Yamaha XVS950A

Description

One ride on the versatile V-Star 950 reveals a benchmark in middleweight cruising.

With a super low seat height, the XVS950A is designed to appeal to a wide range of people looking for a sweet handling yet punchy V-twin.

Beyond the traditional air-cooled exterior you’ll find all the latest technology including fuel injection, four-valve cylinder heads, ceramic-composite-lined cylinders and forged aluminium pistons that mean business.

The chassis design has been mass centralised with a carefully designed rigidity in the longitudinal, lateral and torsional directions to offer an awesome riding experience. Add a large diameter, low profile front tyre and optimal front end weighting and you’ll be searching out sweeping bends to enjoy with confidence.

XVS950A. Ride the benchmark.

Reference Number/VIN:
XVS950AF
Colour:
Raven, Candy Red
Engine:
Air-cooled, 4-stroke, SOHC 4-valve, V-twin
Drive Away:
Yes
Make:
YAMAHA
Model:
XVS950A
Type:
Cruiser
Condition:
New
Year:
2015

Enquiry

Features

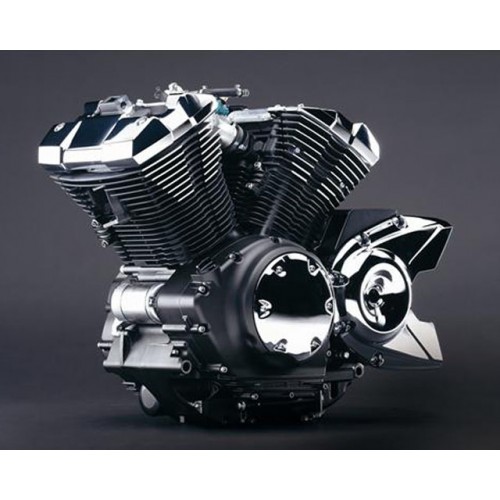

Smooth V-twin

Smooth V-twin

The 942cc engine is an aircooled SOHC 60° V twin. With four valves per head, a pent-roof shaped combustion chamber, and 9.0:1 compression ratio, this engine has been carefully designed to produce excellent power characteristics – and best-in-class acceleration.

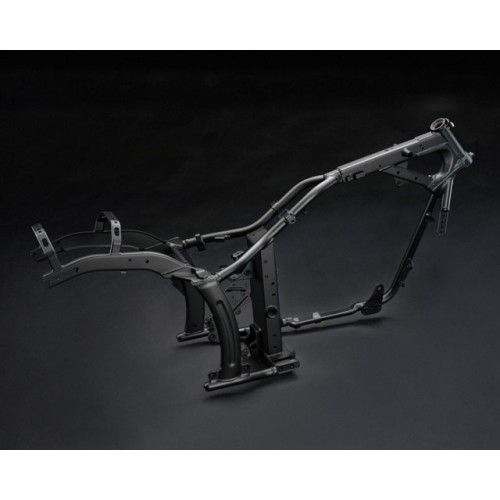

Double cradle frame

Double cradle frame

Steel main frame has been carefully designed to offer an ideal rigidity balance in the longitudinal, lateral, and torsional directions and uses the engine as a stressed member. This all translates to an exceptional light feeling that riders are sure to appreciate.

18 inch front wheel

18 inch front wheel

The big 18-inch front wheel helps deliver this cruiser motorcycle’s sporty handling characteristics and “Sport Classic” cruiser looks. A low-profile 130/70-18 tyre is mounted on an 8-spoke lightweight aluminium wheel. The 170/70-16 bias ply rear tyre adds a beefy look and helps transfer all that torque and power to the pavement.

Classic look

Classic look

The large-diameter meter is mounted on the fuel tank for a traditional look. Meter functions include speedometer, fuel level warning light, oil level warning light, and odometer with two trip meter functions, fuel trip meter, and clock display. The LCD display illumination can be adjusted using a right side handlebar switch.

Technical Specifications


Engine

Engine Type
Air-cooled, 4-stroke, SOHC 4-valve, V-twin
Displacement (cc)
942
Bore x Stroke (mm)
85.0 x 83.0
Compression Ratio
9.0 : 1
Lubrication System
Wet sump
Fuel Management
Fuel injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
17
Final Transmission
Belt
Transmission
Constant mesh 5-speed

Chassis

Frame Type
Steel double cradle
Suspension Front
Telescopic forks, 135mm travel
Suspension Rear
Swingarm (link suspenson), 110mm travel
Brakes Front
Hydraulic single disc, 320mm
Brakes Rear
Hydraulic single disc, 298mm
Tyres Front
130/70-18M/C 63H Tubeless
Tyres Rear
170/70B16M/C 75H Tubeless

Dimensions

Length (mm)
2435
Width (mm)
985
Height (mm)
1080
Seat Height (mm)
1080
Wheelbase (mm)
1685
Ground Clearance (mm)
145
Wet Weight (kg)
278
